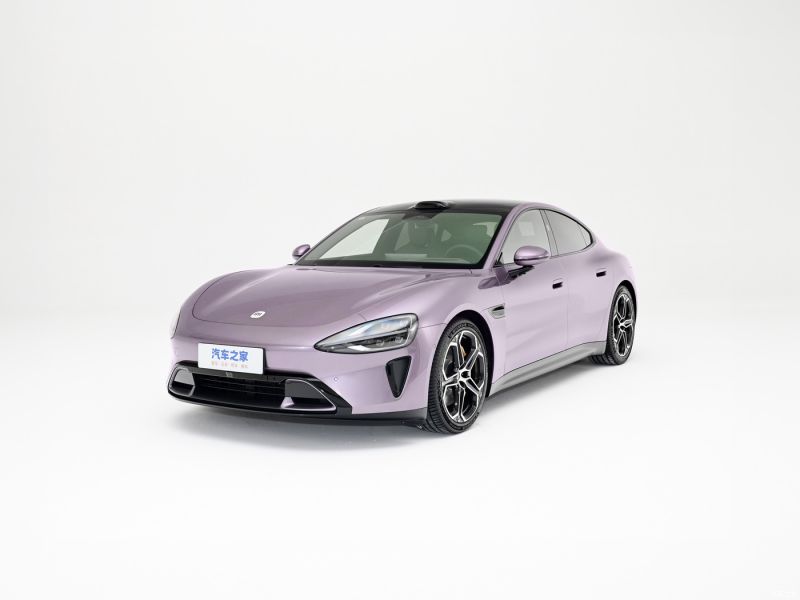

Mi SU7 2024 830km rear drive super long life high class intelligent driving Pro version

Xiaomi SU7 2024 830km rear drive super long life high class intelligent driving Pro version

Basic parameter

manufacturer

Mi Automobile

rank

Medium and large vehicle

Energy type

Pure electric

Time to market

2024.03

CLTC Electric Range (km)

830

Battery fast charge time (hours)

0.5

Battery fast charge range (%)

10-80

Maximum power (kW)

220

Maximum torque (N-m)

400

Body structure

Four-door, five-seater sedan

Motor (Ps)

299

Length * Width * Height (mm)

4997*1963*1455

Official 0-100km/h acceleration (s)

5.7

Maximum speed (km/h)

210

Power equivalent fuel consumption
(L/100km)

1.46

Vehicle warranty

● Five years or 100,000 km

Service weight (kg)

2090

Maximum load weight (kg)

2540

body

Length (mm)

4997

Width (mm)

1963

Height (mm)

1455

Wheelbase (mm)

3000

Front wheel base (mm)

1693

Rear wheel base (mm)

1699

Full load minimum ground clearance (mm)

120

Approach Angle (°)

14

Departure Angle (°)

16

Minimum turning radius (m)

5.7

Body structure

Three-compartment car

Door opening mode

Swing door

Number of doors (each)

●4

Number of seats (PCS)

●5

Front trunk volume (L)

105

Trunk volume (L)

517

Wind resistance coefficient (Cd)

0.195

motor

Front motor brand

Rear motor brand

Combined electron

Front motor type

​

Rear motor type

TZ220XS000

Motor type

Permanent magnet/synchronous

Total motor power (kW)

220

Total motor horsepower (Ps)

299

Total motor torque (N-m)

400

Maximum power of front motor (kW)

Maximum torque of front motor (N-m)

Maximum power of rear motor (kW)

220

Maximum torque of rear motor (N-m)

400

Number of driving motors

Single motor

Motor layout

postposition

Battery type

● Lithium iron phosphate battery

Cell brand

● The Ningde era

Battery specific technology

Spirit cell

Battery cooling system

Liquid cooling

CLTC Electric Range (km)

830

Battery energy (kWh)

94.3

100km power consumption (kWh/100km)

12.9

Three power system warranty

● Eight years or 160,000 km

Fast charge function

support

High voltage fast charge

High Voltage Platform (V)

400

Battery fast charge time (hours)

0.5

Battery fast charge range (%)

29495

Charging pile Price (Yuan)

3999 yuan

Position of the slow charge port

Car left rear

Position of the fast charge interface

Car left rear

External AC discharge power (kW)

3.5

gearbox

For short

Single-speed transmission for electric vehicles

Number of gears

1

Transmission type

Fixed tooth ratio gearbox

Chassis steering

Driving mode

● Rear rear drive

Four-wheel drive form

​

Front suspension type

● Double fork arm independent suspension

Rear suspension type

● Five-link independent suspension

Assist type

● Electric power

Car body structure

self-supporting

Wheel braking

Front brake type

● Ventilated disk type

Rear brake type

● Ventilated disk type

Parking brake type

● Electronic parking

Front tire specification

●245/45 R19
* 245/40 R20

Rear tyre specification

●245/45 R19
* 245/40 R20

Spare gauge

● None

Passive safety

Main/passenger airbags

Primary/secondary

Front/rear side airbags

Front ●/ back -

Front/rear head bag (air curtain)

Front/back ●

Front intermediate air bag

●

Passive pedestrian protection

●

Active safety

ABS anti-lock

●

Braking force distribution (EBD/CBC, etc.)

●

Brake Assist (EBA/BAS/BA
Etc.)

●

Traction control
(ASR/TCS/TRC, etc.)
Body stability control

●

(ESC/ESP/DSC, etc.)

●

Tire pressure monitoring function

● Tire pressure display

Seat belt not fastened reminder

● All Car

ISOFIX child seat interface

●

Lane departure warning system

●

Active braking/active safety system

●

Fatigue driving tips

●

DOW open door warning

●

Forward collision warning

●

Rear collision warning

●

Sentinel Mode/Clairvoyance

●

Slow speed warning

●

Built-in tachograph

●

Road assistance call

●

Driving control

Driving mode switching

● Sports
● Standard/comfortable
● Snow
● Custom/Personalization

Energy recovery system

●

Automatic parking

●

Uphill aid

●

Descend gently on a steep slope

Variable suspension function

Air suspension

Driving hardware

Front/rear parking radar

Front/back ●

Driver assistance image

● 360-degree panoramic images

Transparent chassis /540 degree image

low

Driver assistance chip

● Nvidia Drive Orin

Chip final force

●84 TOPS

Forward awareness camera

● Binocular

Number of cameras

●11

Front perception camera pixels

●8 million

Environmental-aware camera pixels

●3 million

Look around the camera pixels

●3 million

Ultrasonic radar number

●12 pieces

Number of millimeter wave radars

●3

Lidar brand

●HESAI Technology

Lidar model

●AT128

Lidar quantity

●1

Number of LiDAR lines

●128 wire

Lidar 10% reflectivity detection
Distance

●200 meters

Number of lidar point clouds

● 1.53 million/second

Driving function

Cruise control system

● Full speed adaptive cruise

Driver assistance system

●XiaomiPilotMax

Driver assistance class

●L2

Reverse side warning system

●

Satellite navigation system

●

Navigation traffic information display

●

Map brand

● Autonavi

Parallel auxiliary

●

Lane keeping assist system

●

Keep lane centered

●

Road traffic sign recognition

●

Automatic parking

●

Remote control parking

●

Memory parking

*

Tracking astern

*

Automatic lane change assistance

●

Automatic ramp exit

*

Signal light recognition

*

Remote call

*

Steering wheel off hand detection

●

Start reminder

●

Autopilot assist section

* Urban sections
* High Speed section

Appearance/Anti-theft

Electric spoiler

*

Rim material

● Aluminum alloy

Electric suction door

Frameless design door

●

Electric trunk

●

Electric trunk location memory

●

Car central control lock

●

Key type

* Remote key
● Bluetooth Key
●NFC/RFID keys
● Smart Bracelet Key

Keyless activation system

●

Keyless access function

● All Car

Active closed intake grille

●

Remote startup function

●

Battery preheating

●

External discharge

●

Outside light

Low light source

●LED

High beam light source

●LED

Lighting feature

● Matrix

LED daytime running lights

●

Adaptive near and far light

●

Automatic headlight

●

Steering auxiliary light

●

Front fog lights

Headlight height adjustable

●

Headlights turn off late

●

Skylight/Glass

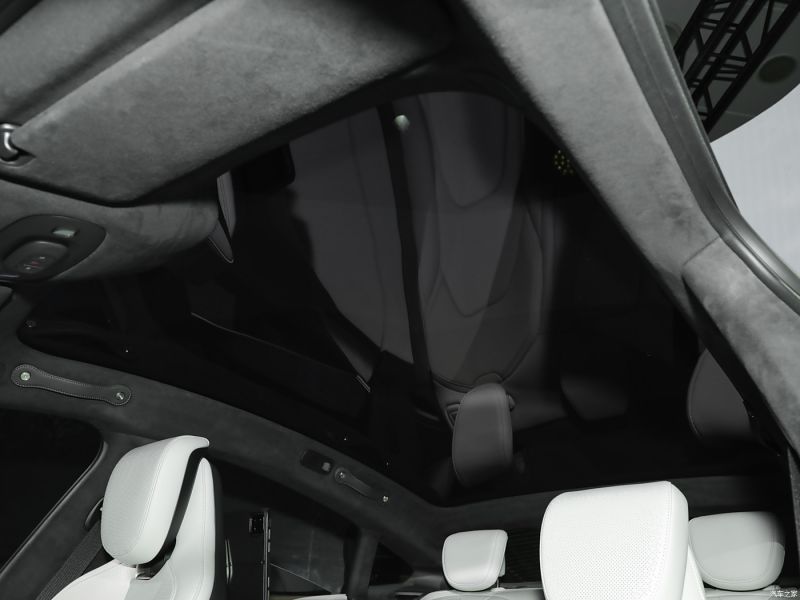

Skylight type

● Do not open the panoramic skylight

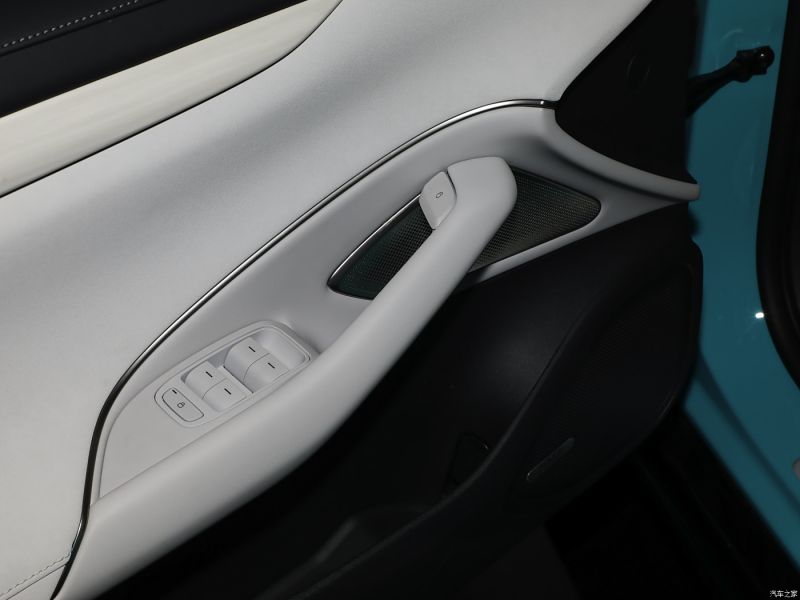

Front/rear power Windows

Front/back ●

Window - key lift function

● All Car

Window anti-clamping function

●

Rear side privacy glass

●

Car mirror

● Main driver + lighting
● Co-pilot + Lighting

Rear wiper

​

Sensor wiper function

● Rain induction type

Exterior rear-view mirror

Exterior rearview mirror function

● Electric regulation
● Electric folding
● Rearview mirror memory
● Rearview mirror heating
● Automatic reverse down
● Lock car automatic folding

Screen/System

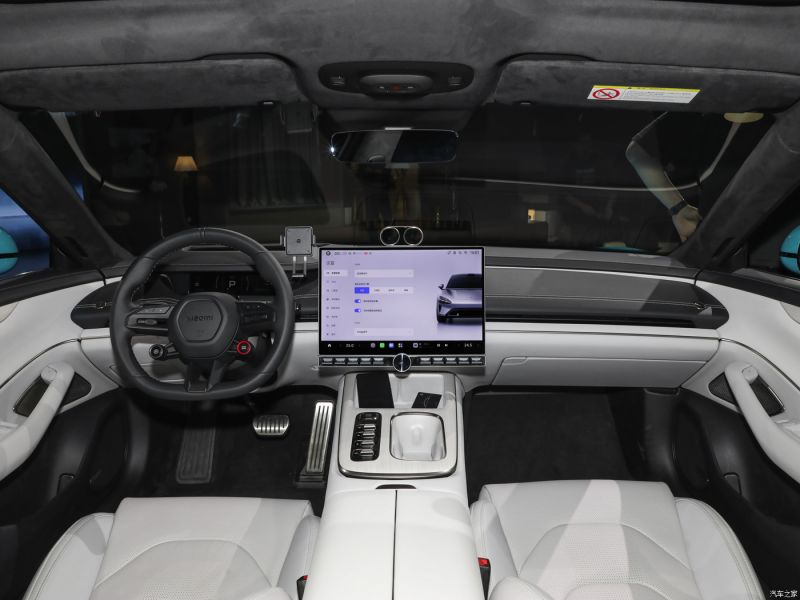

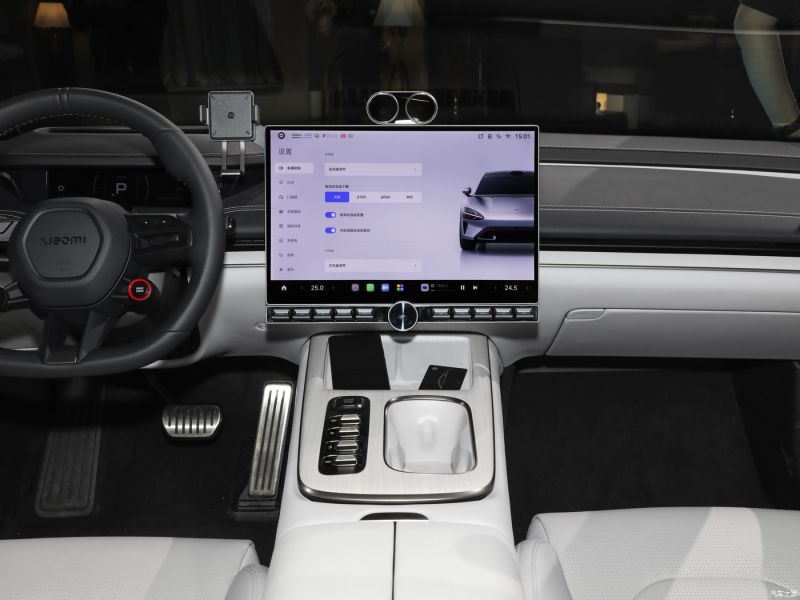

Central control color screen

● Touch LCD screen

Center control screen size

●16.1 inches

Center control screen resolution

●3K

Center screen pixel density

●225PPI

Bluetooth/car phone

●

Mobile interconnection/mapping

● Support for CarPlay
● Original factory interconnection/mapping
● Support Carlink

Speech recognition control system

● Multimedia systems
● Navigation
● Phone
● Air Conditioning
● Seat heating
● Seat ventilation

Voice assistant wake word

● Xiao Ai classmate

Voice-free wake-up words

●

Voice region wake recognition

● Five areas

Continuous speech recognition

●

Visible to say

●

Voiceprint recognition

●

App store

●

Car smart chip

● Qualcomm Snapdragon 8295

Rear LCD screen

*

Rear LCD screen size

*11 inches
*12.4 inches

Number of multimedia screens in the back row

*2

Rear control multimedia

*

Intelligent configuration

Vehicle networking

●

4G/5G network

●5G

OTA upgrade

●

Wi-Fi hotspot

●

Mobile APP remote function

● Door control
● Window control
● Vehicle start
● Charge Management
● Air conditioning control
● Steering wheel heating
● Seat heating
● Seat ventilation
● Vehicle condition inquiry/diagnosis
● Vehicle location/search
● Car owner Service
(Find charging stations, gas stations, parking lots, etc.)

Simulated sound wave

*

Car KTV

●

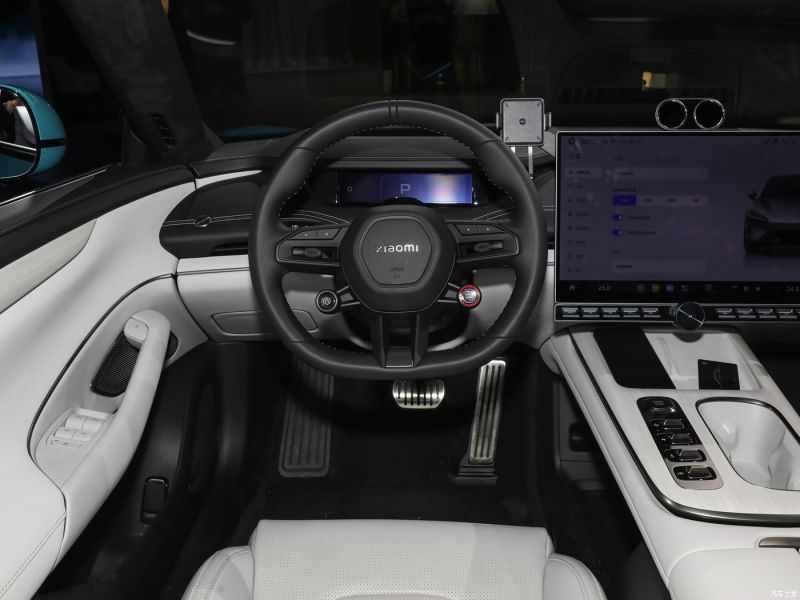

Steering wheel/Inside mirror

Steering wheel material

● Cortex

Steering wheel position adjustment

● Manual up and down + front and rear adjustment

Shift pattern

● Electronic shift shift

Multi-functional steering wheel

●

Steering wheel shift

​

Steering wheel heating

●

Steering wheel memory

​

Driving computer display screen

● Color

Full LCD dashboard

●

Liquid crystal meter dimensions

●7.1 inches

HUD heads-up digital display

​

HUD head-up size

​

Internal rearview mirror function

● Automatic anti-glare

In-car charging

Multimedia/charging interface

●USB
●Type-C

Number of USB/Type-C ports

● 4 in the front row / 2 in the back row

Maximum USB/Type-C charging Power

●67W

Mobile phone wireless charging function

● Front Row

Mobile phone wireless charging power

●50W

Luggage compartment 12V power interface

●

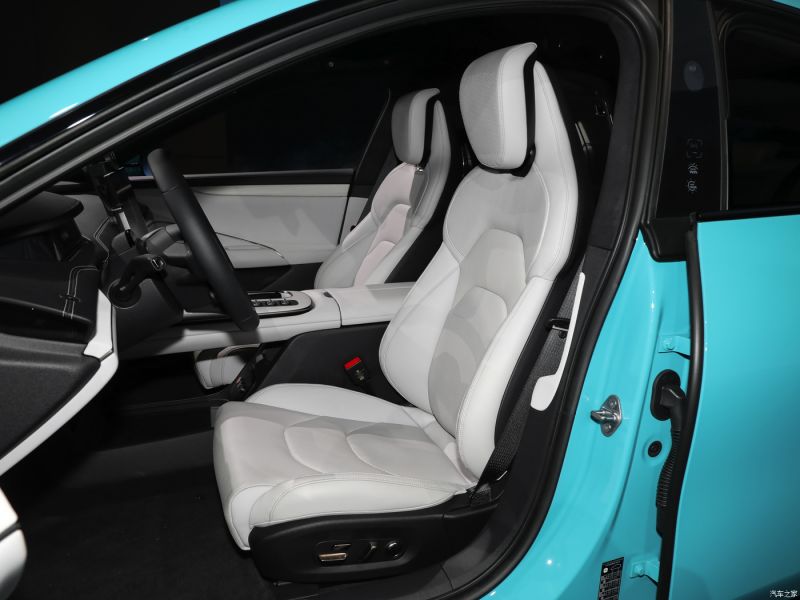

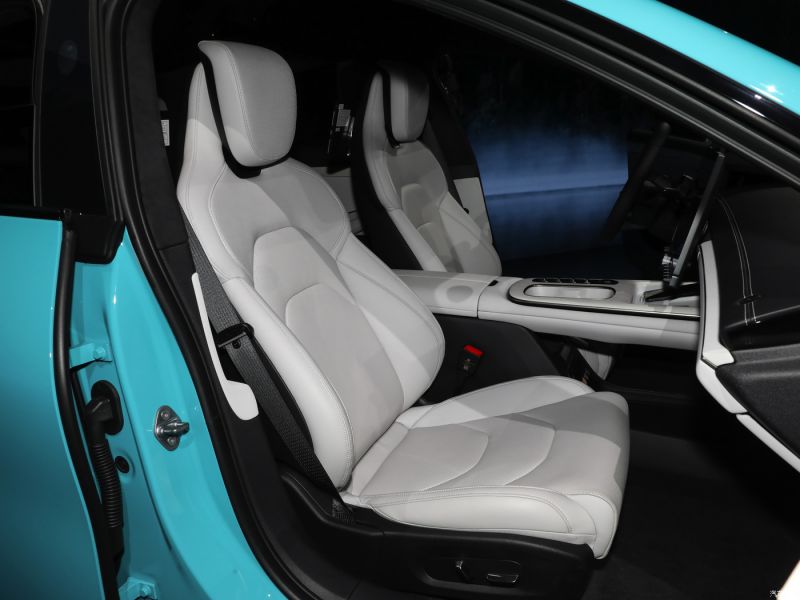

Seat configuration

Seat material

● Imitation leather
* Real leather

Sports style seat

●

Main seat adjustment mode

● Adjustment before and after
● Backrest adjustment
● High and low adjustment (4-way)
● Waist support (4 directions)

Auxiliary seat adjustment mode

● Adjustment before and after
● Backrest adjustment
● High and low adjustment (4-way)

Main/passenger seat electric regulation

Primary/secondary

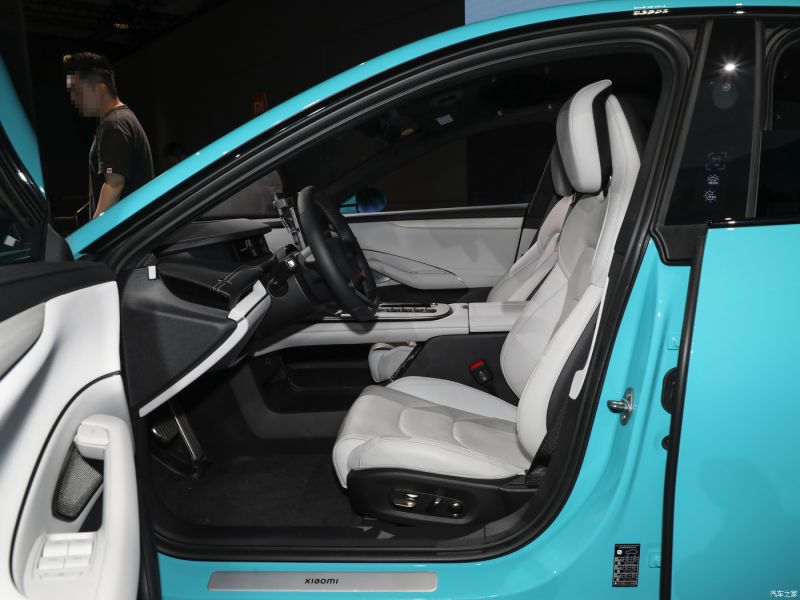

Front seat function

● Heating
● Ventilation
* Headrest speaker (driving position only)

Power seat memory function

● Driving seat
● Passenger seat

Passenger seat rear adjustable button

​

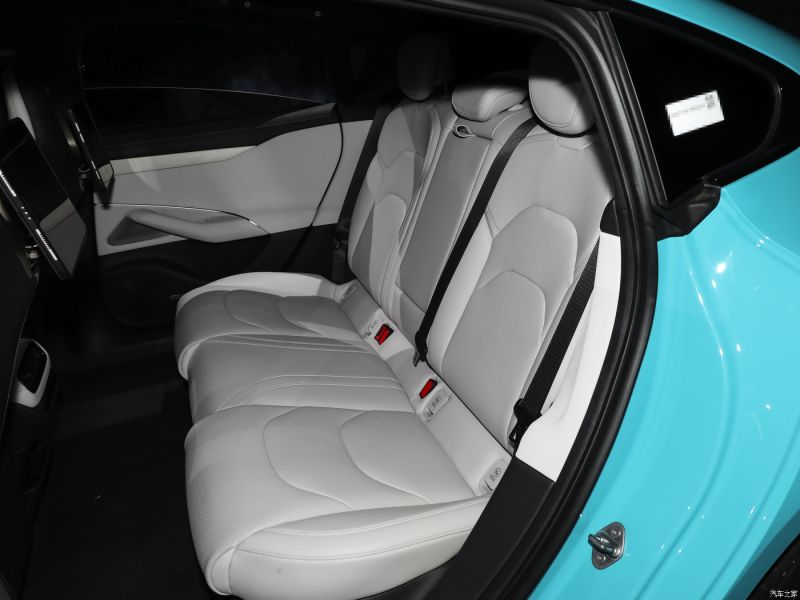

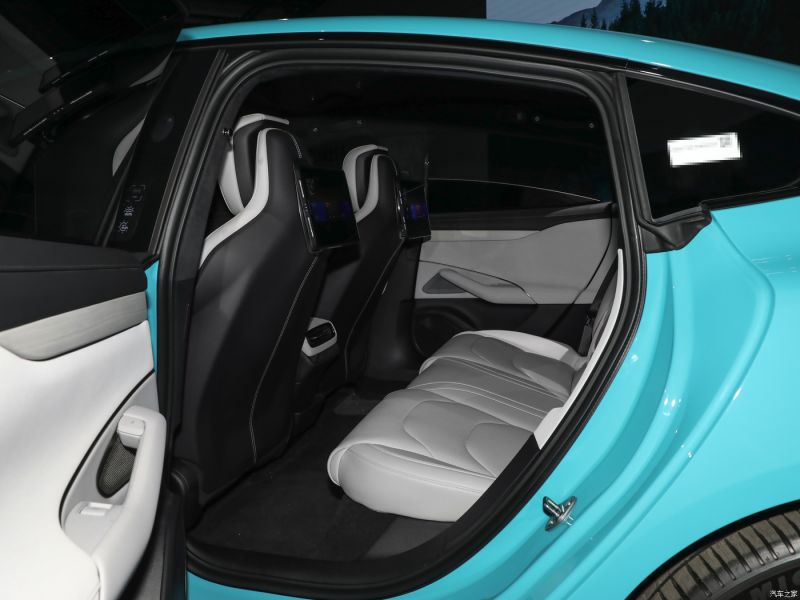

Second row seat adjustment

​

Second row seat feature

● Heating

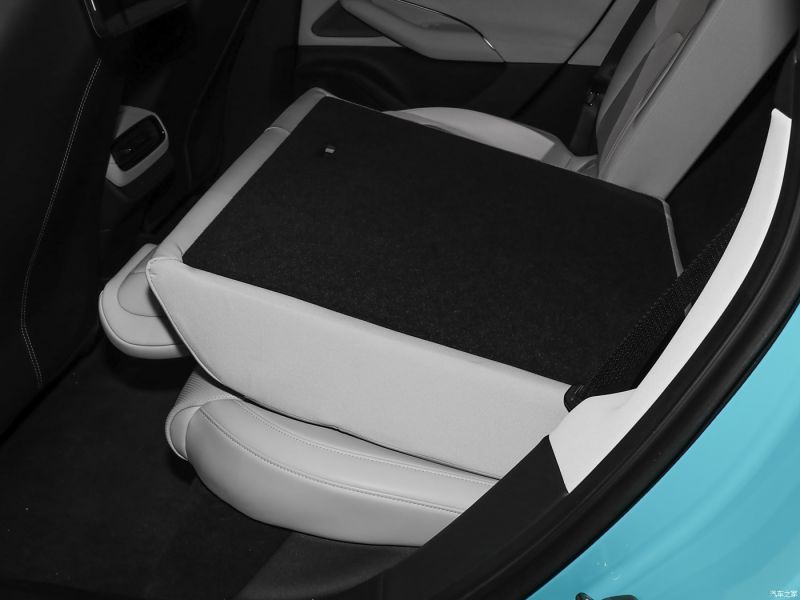

Rear seat reclining form

● Put the ratio down

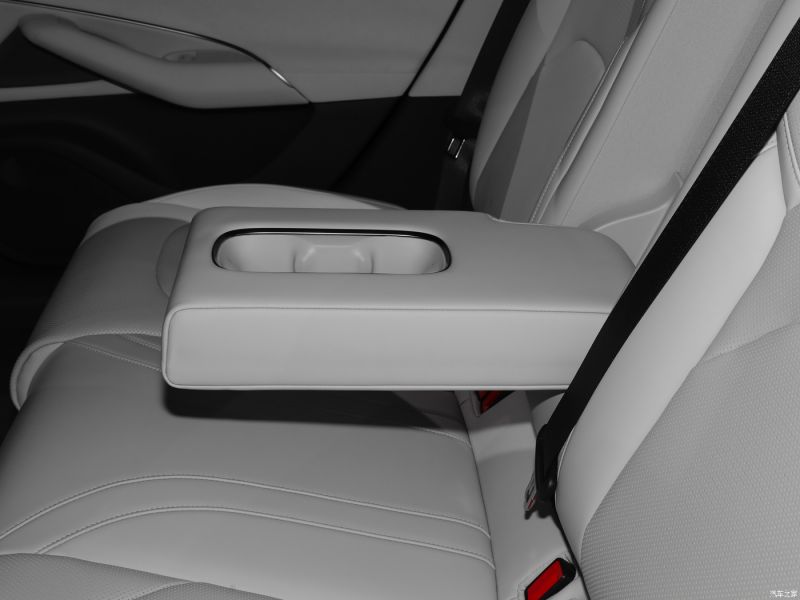

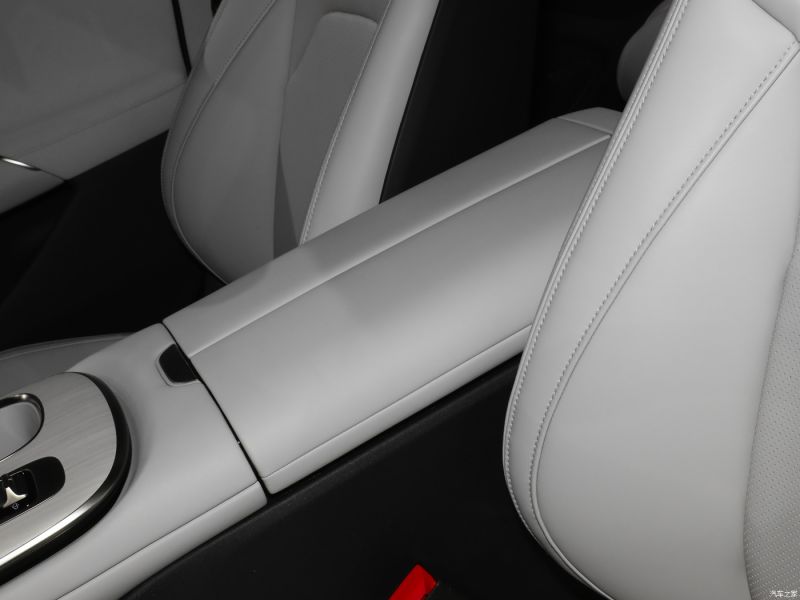

Front/rear center armrests

Front/back ●

Rear cup holder

low

Audio/interior lighting

Loudspeaker brand name

​

Number of speakers

●10 horns
*25 speakers

DolbyAtmos

*

Interior ambient light

●256 colors

Air conditioning/Refrigerator

Air conditioner temperature control mode

● Automatic air conditioning

Heat pump air conditioning

●

Independent rear air conditioning

Backseat air outlet

●

Temperature zone control

●

Car air purifier

●

PM2.5 filter device in car

●

Anion generator

●

In-car fragrance device

*

Air quality monitoring

●

Car refrigerator

*
