Product Details
Parameter configuration

Haval second generation big dog new energy is not only a car, but also a new way of life. Choose Haval second generation Big Dog New energy to open a new chapter of your green intelligent travel.

### Feature function

- ** Intelligent Driver Assistance System ** : Equipped with advanced automatic driving assistance technology, including automatic parking, adaptive cruise, lane keeping and other functions, making driving easier and safer.

- ** Efficient Energy Management System ** : With the latest battery technology, it provides longer range and faster charging speed to meet the needs of daily commuting and long-distance travel.

- ** Strong off-road performance ** : Inherit the off-road genes of the Haval Big Dog series, with excellent passability and stability, whether it is urban road or rugged mountain road can easily cope.

- ** Eco-friendly interior materials ** : The use of recyclable and low VOC emission interior materials reduces environmental impact while providing a healthy and comfortable driving environment.

### Quality standard

- ** Rigorous testing ** : Each Haval second generation Big Dog New Energy has undergone strict quality control and durability testing to ensure that each car can operate stably under various conditions.

- ** International Safety standards ** : Comply with international safety standards, equipped with a number of active and passive safety technologies, such as multiple airbags, ESP body stability system, all-round protection of occupant safety.

- ** Environmental Certification ** : Through a number of environmental certification, to ensure that the impact on the environment during the production and use of vehicles is minimized.

2023 DHT-PHEV 105km tidal electric version
essential parameter
manufacturer	Great Wall motor
rank	medium-sized SUV
Energy type	Plug-in electric hybrid power system
Environmental standards	country Ⅵ
time to market	2023.09
NEDC pure electric range (km)	105
WLTC pure electric range (km)	80
Battery Fast charge time (hours)	0.5
Battery fast charging capacity range of (%)	30-80
maximum power (kW)	240
Maximum torque (N·m)	530
gear-box	2 Block DHT
bodywork	A 5-door, 5-seat SUV
engine	1.5T 154 hp L4
electric motor (Ps)	177
Long * width * height (mm)	470519081780
Top vehicle speed (km/h)	190
WLTC combined fuel consumption (L / 100km)	1.85
Minimum charge state fuel consumption (L / 100km)	5.92
Power-equivalent fuel consumption (L / 100km)	2.04
Vehicle warranty	● Six years or 150,000 km
curb weight (kg)	2005
Max. full load mass (kg)	2400
body of car
length (mm)	4705
width (mm)	1908
altitude (mm)	1780
wheel base (mm)	2810
front gauge (mm)	1641
rear track (mm)	1640
Full load minimum ground clearance (mm)	173
No-load minimum ground clearance (mm)	200
approach angle ()	24
departure angle ()	30
ramp breakover angle ()	19
bodywork	SUV

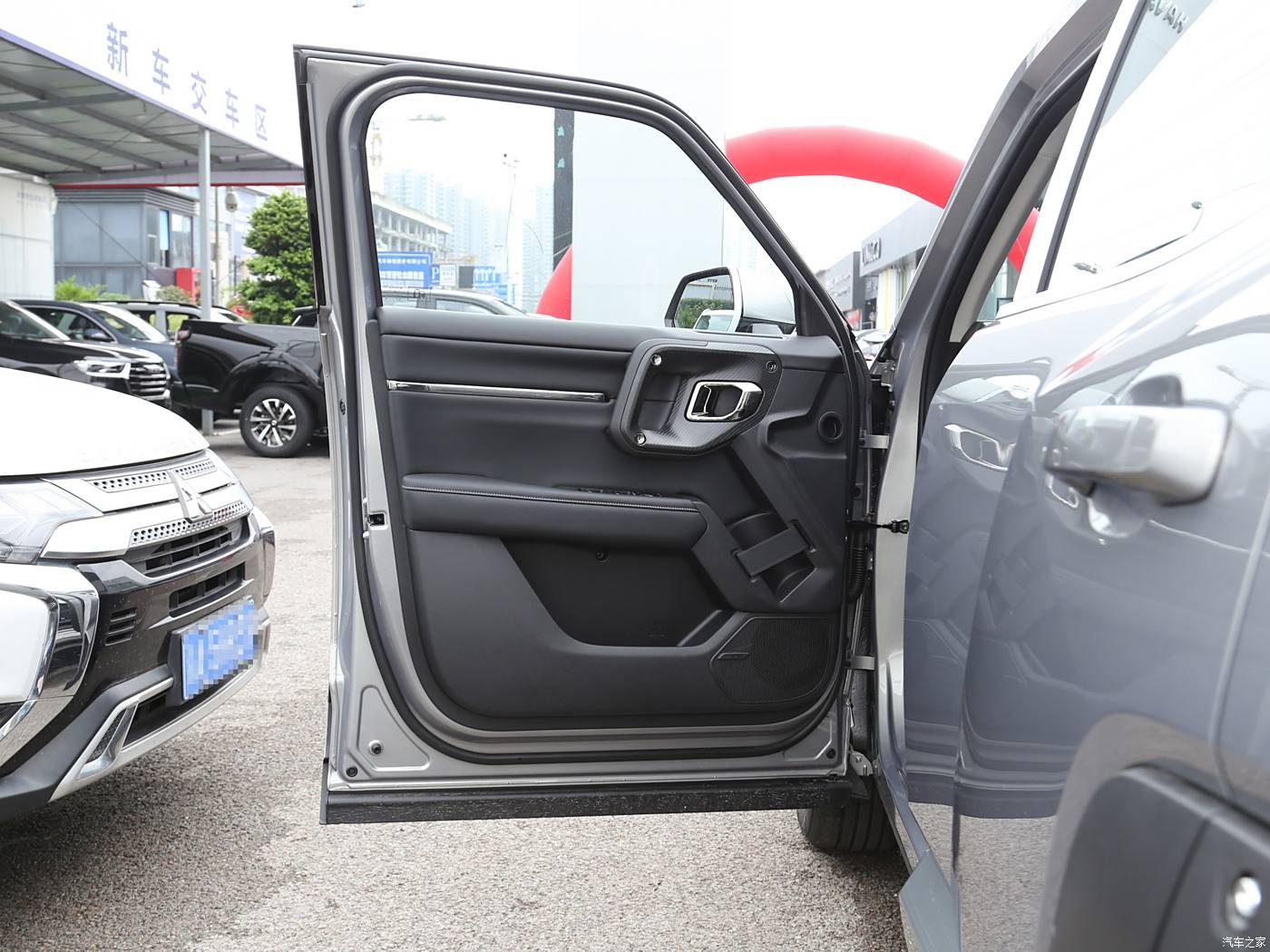

Door opening mode	vertical hinged door
Number of doors (one)	●5
Number of seats (individual)	●5
fuel tank capacity (L)	55
Trunk Volume (L)	483-1362
engine
engine type	GW4B15D
displacement (mL)	1499
displacement (L)	1.5
Intake form	turbocharging
Engine layout	Horizontal
Cylinder arrangement form	L
Number of cylinders (individual)	4
Number of valves per cylinder (s)	4
admission gear	DOHC
maximum horsepower (Ps)	154
maximum power (kW)	113
Maximum torque (N·m)	233
Maximum net power (kW)	110
Energy type	Plug-in electric hybrid power system
Fuel label	No.92
Oil supply method	Direct spray
Cylinder cap material	alufer
Cylinder material	alufer
Environmental standards	country VI
electric motor
Motor type	Permanent magnet / synchronization
Total power of electric motor (kW)	130
Total motor horsepower (Ps)	177
Total torque of Electric Motor (N-m)	300
Maximum power of the front motor (kW)	130
Maximum torque of the front motor (N·m)	300
Maximum power of the rear motor (kW)
Maximum torque of the rear motor (N·m)
System integrated power (kW)	240
System integrated power (Ps)	326
System integrated torque (N·m)	530
Number of driving motors	Single motor
Motor layout	prepose
Battery type	● ternary lithium battery
Battery brand	● Honeycomb Energy ● Guoxuan High-tech
Battery cooling method	liqukd cooling
NEDC pure electric range (km)	105
WLTC pure electric range (km)	80
NEDC comprehensive endurance range (km)	1000
Battery energy (kWh)	19.94
Power consumption per 100km (kWh / 100 km)	18
Three power system warranty	● No limit of years / mileage for the first owner (the exemption clause is subject to the official)
Fast charging function	support
Fast charging power (kW)	33
Battery Fast charge time (hours)	0.5
Battery fast charging capacity range of (%)	30-80
Slow charging interface position	The rear right side of the car
Fast charging interface position	The rear right side of the car
External AC discharge power (kW)	3.3
gear-box
the abbreviated form of a name	2 Block DHT
Number of gear	2
Transmission type	Hybrid special transmission (DHT)
Chassis steering
Drive way	● Front-engine
Four-wheel drive form
Front suspension type	● McPherson type independent county rack
Rear suspension type	● Multi-link type independent county rack
Power type	● electric power
car body structure	Carrying type
Wheel brake
Front Brake Type	● Ventilation Disc
Rear brake type	● Ventilation Disc
Parking brake type	● Electronic Parking
Front tire specifications	●235/60 R19
Rear tire specifications	●235/60 R19
Formal specification	● type repair kit
Passive safety
Main / passenger seat airbag	Main ● / Deputy ●
Front / rear side airbags	Front ● / Post-
Front / rear head airbag (air curtain)	Pre- ● / post- ●
Active safety
ABS anti-lock	●
Braforce Distribution (EBD / CBC etc.)	●
Brake Assist (EBA / BAS / BA, etc.)	●
Traction control (ASR / TCS / TRC, etc.)	●
Body stability control (ESC / ESP / DSC, etc.)	●
Tire pressure monitoring function	● tire pressure display
The seat belt is not reminded	● whole car
ISOFIX Child seat interface	●
Lane departure warning system	●
Active brake / active safety system	●
Fatigue driving tips	●
DOW open the door for early warning
Forward collision warning	●
Rear collision warning
Low speed driving warning	●
Built-in dashcam	*
Road rescue call	●
Driving control
Driving mode switch	● Sport ● economy ● Standard / comfortable ● off-road
Single pedal mode	●
energy recovery systems	●
Automatic parking	●
uphill assist	●
The steep slope slow down	●
Driving hardware
Front / rear parking radar	Pre- * / post- ●
Driving assistance images	A 360-degree panoramic image
Transparent chassis / 540 ° image	●
Ahead sensing camera	● monocular
Number of cameras	● 5
Number of ultrasonic radars	● 4 * 12
2 for the number of millimeter-wave radars	● 2
Driving function
Cruise system	● Adaptive Cruise
Auxiliary driving level
Revercar side warning system
satellite navigation system	●
Navigation road condition information display	●
Map brand	● Gaud
And line auxiliary
Lane-keeping assist system	●
The lane is held in the center	●
Road traffic sign identification	●
Automatic parking	*
Remote parking	*
Follow the reverse	*
Autonomous driving-assisted road section
Appearance / anti-theft
Wheel material	● alufer
Electric trunk	●
Sensing the trunk
Electric trunk position memory	●
roof rack	●
Engine electronic anti-theft	●
Central control lock in the car	●
Key type	● Remote Control Key ● Bluetooth Key
Keyless start system	●
Keyless entry function	● front row
Remote start function	●
Battery pre-heating	●
External discharge	●
Outside the car lights
Near light light source	●LED
High beam light source	●LED
LED daytime running lights	●
Adaptive near and far light	●
Automatic headlights	●
Steering auxiliary light
Front fog lamp
Headlight height adjustable	●
Headlights are shut down delay	●
Sunroof / glass

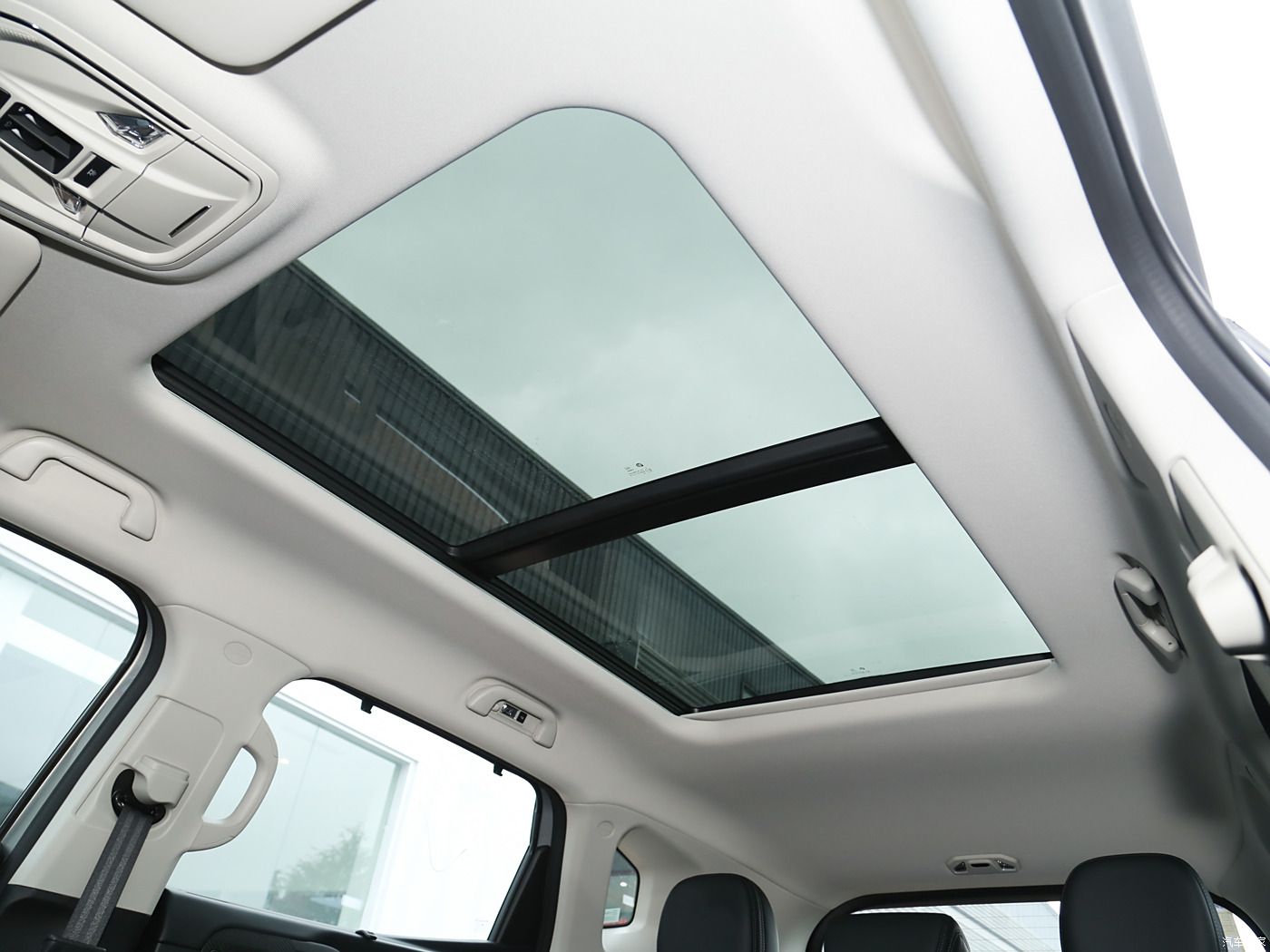

Sunroof type	● The panoramic skylight can be opened
Front / rear power windows	Pre- ● / post- ●
Window-key lift function	● whole car
Window anti-clamp hand function	●
Side window multilayer soundproof glass	● front row
Rear side window sun shade	* hand movement
Inside the car makeup mirror	● Main driver + lighting ● copilot + lighting
After the wiper	●
Sensing wiper function	● rainfall induction
External rearview mirror
External rearview mirror function	● Electric regulation ● electric folding ● rearview mirror memory ● lock car automatic snow
Screen / System

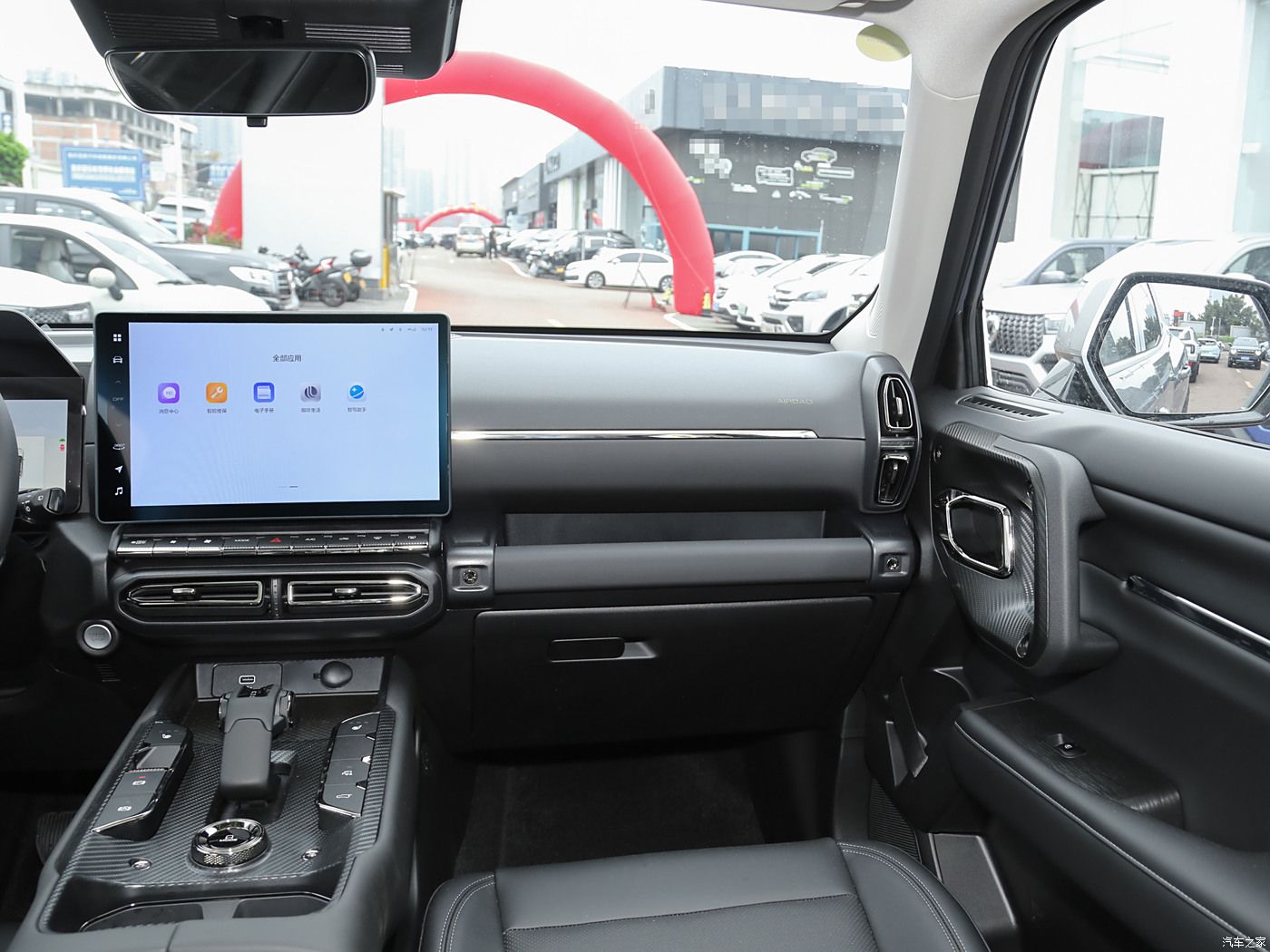

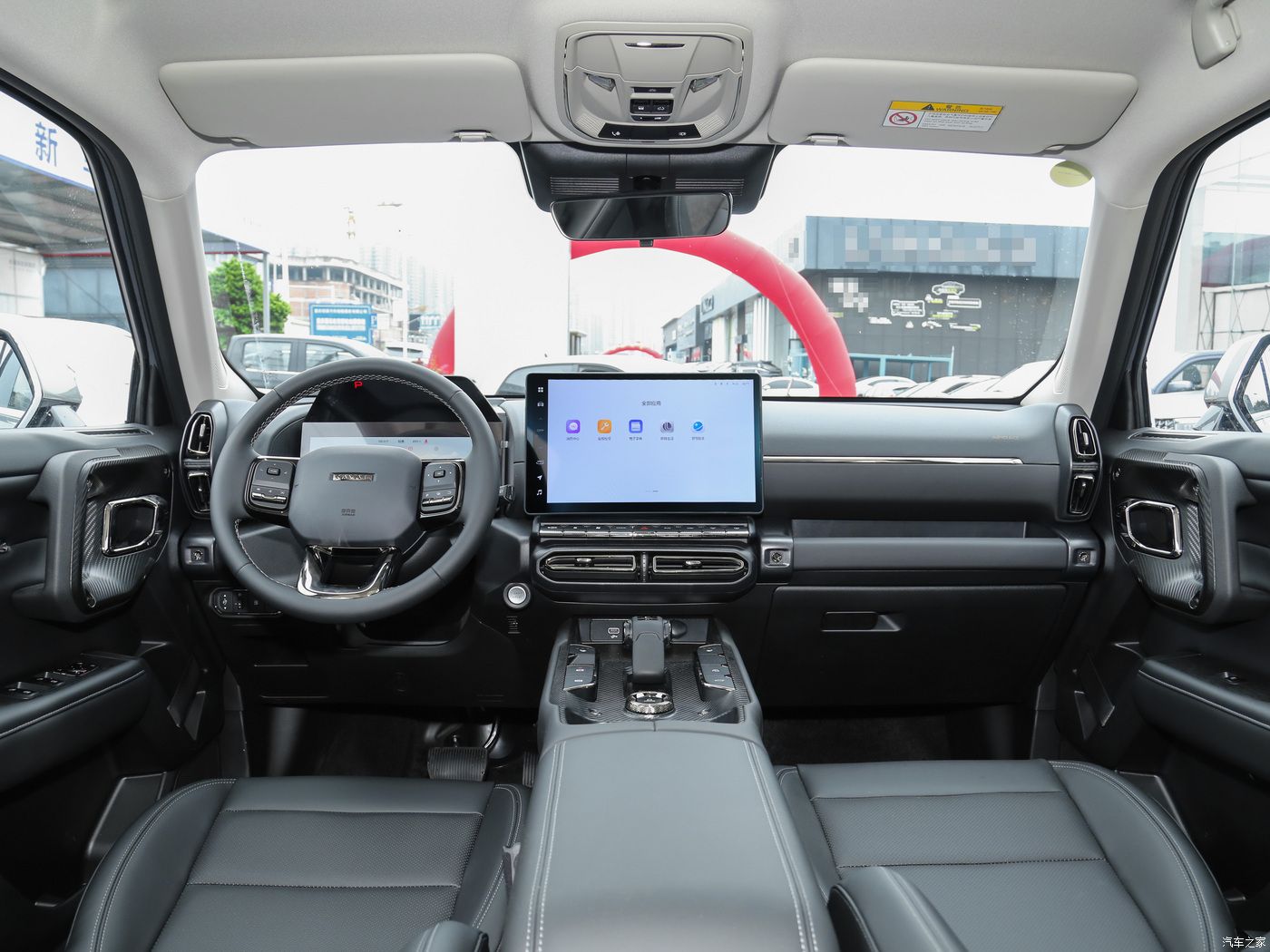

Central control color screen	● touch LCD screen
Central control screen size	● 14.6 in
Bluetooth / vehicle phone	●
Mobile phone interconnectivity / mapping	● Original factory interconnection / mapping ● supports HUAWEIHiCar
Speech recognition control system	● Multimedia system ● navigation ● phone ● air conditioning ● sunroof ● Windows
Voice assistant wake-up words	● Hello, Hav
Voice-free wake-up words	●
Voice subarea wake-up recognition	● bi-region
Voice continuous recognition	●
Visible to say	●
Intelligent configuration
The Internet of cars	●
4G/5G network	●4G
OTA upgrade	●
Wi-Fi hot spot	●
Mobile phone APP remote function	● Door control ● window control ● vehicle start ● charging management ● lamp control ● air conditioning control ● seat heating ● seat ventilation ● vehicle condition query / diagnosis ● vehicle positioning / car search
Steering wheel / inner rearview mirror
Steering wheel material	● cortex
Steering wheel position adjustment	● Manual up and down + before and after adjustment
Shift form	● Electronic gear bars to shift gear

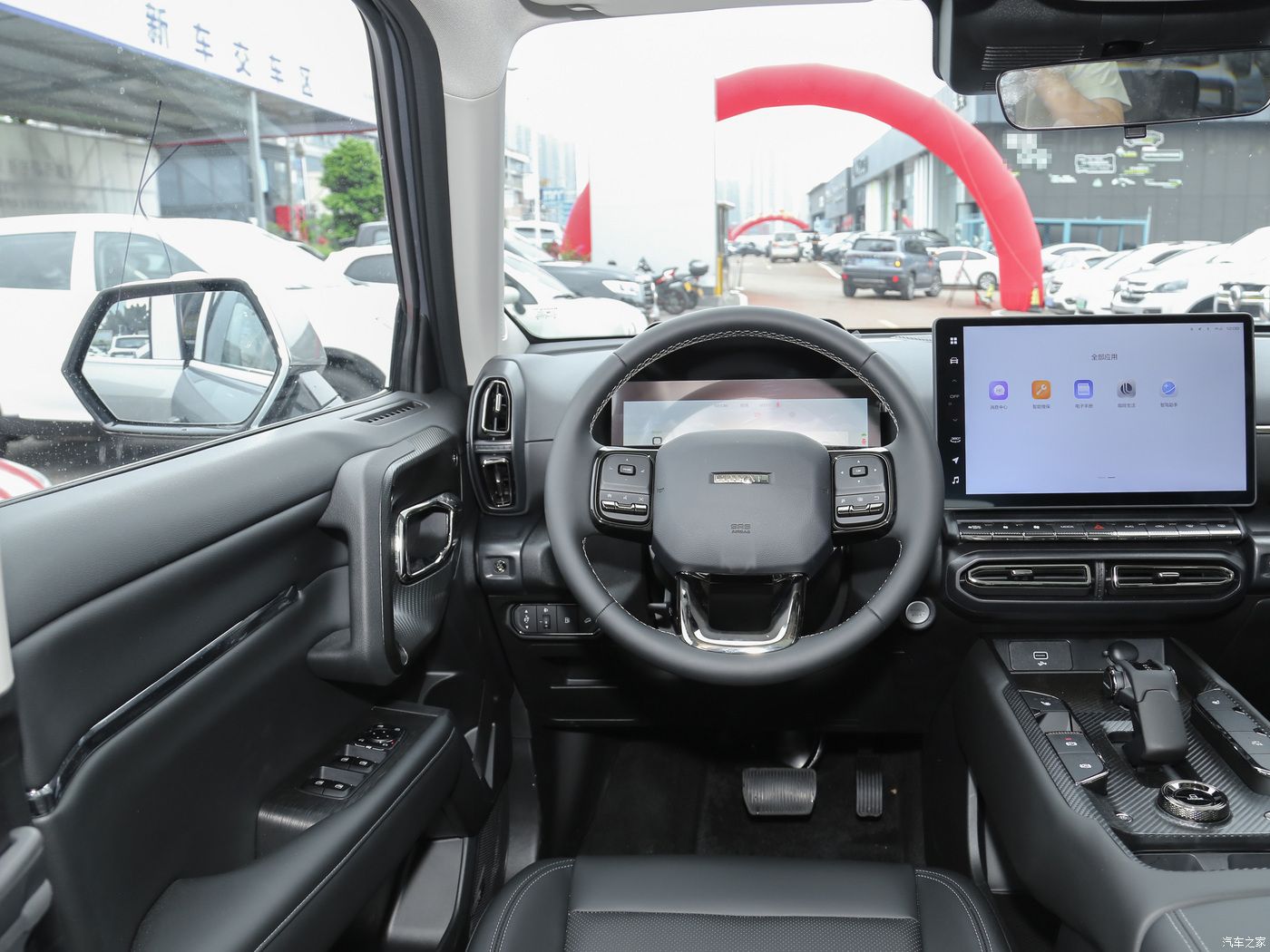

Multi-functional steering wheel	●
Steering wheel heating
The driving computer display screen	● multicolour
Full LCD dashboard	●
LCD meter size	● 12.3 in
The HUD head-up digital display	*
Internal rearview mirror function	● manual anti-glare
ETC installation	*
Charging in the car
Multimedia / charging interface	●USB
Number of USB / Type-C interfaces	● 2 front row / 1 back row
Mobile phone wireless charging function
Mobile reless charging power
Seat configuration

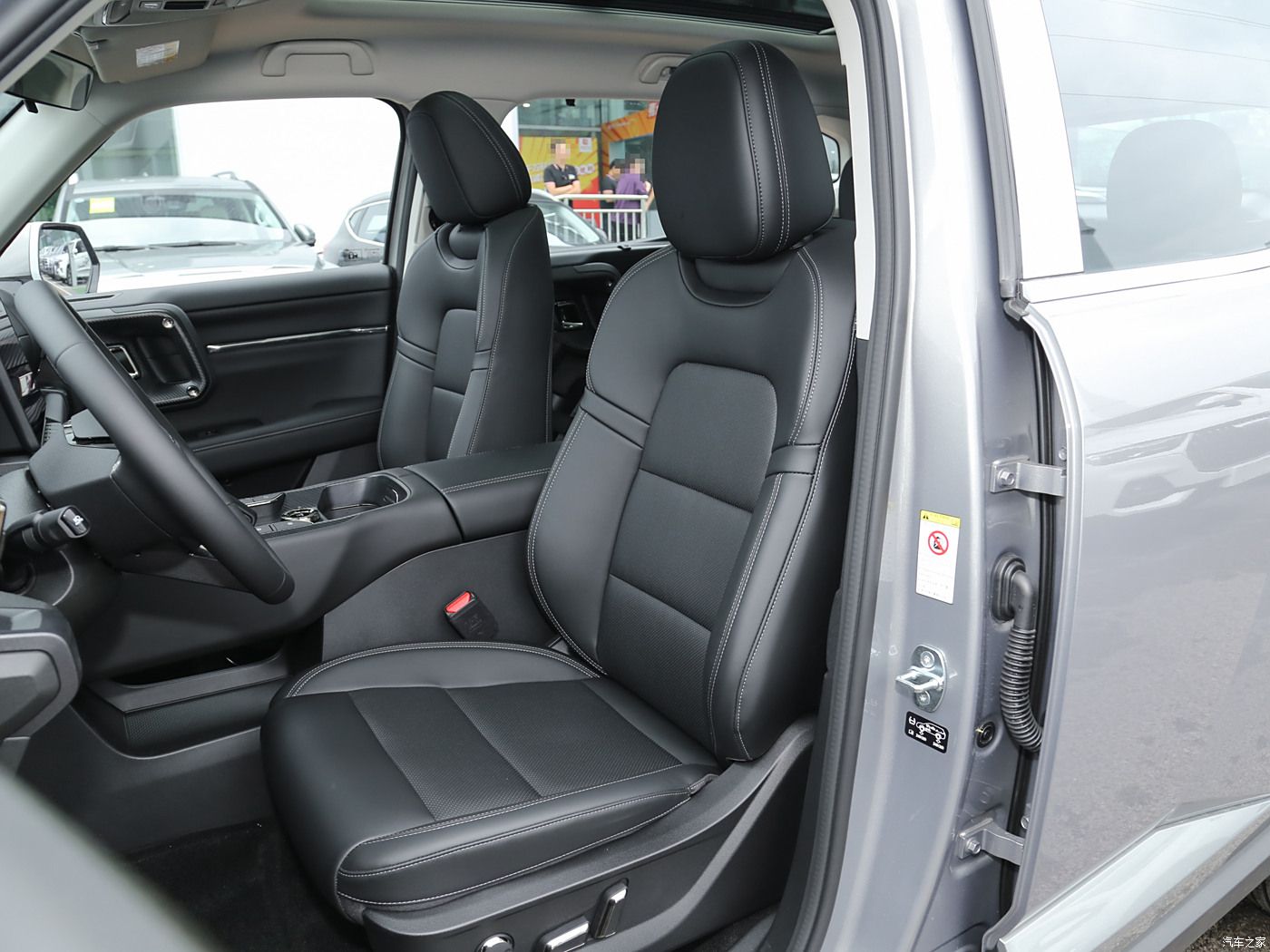

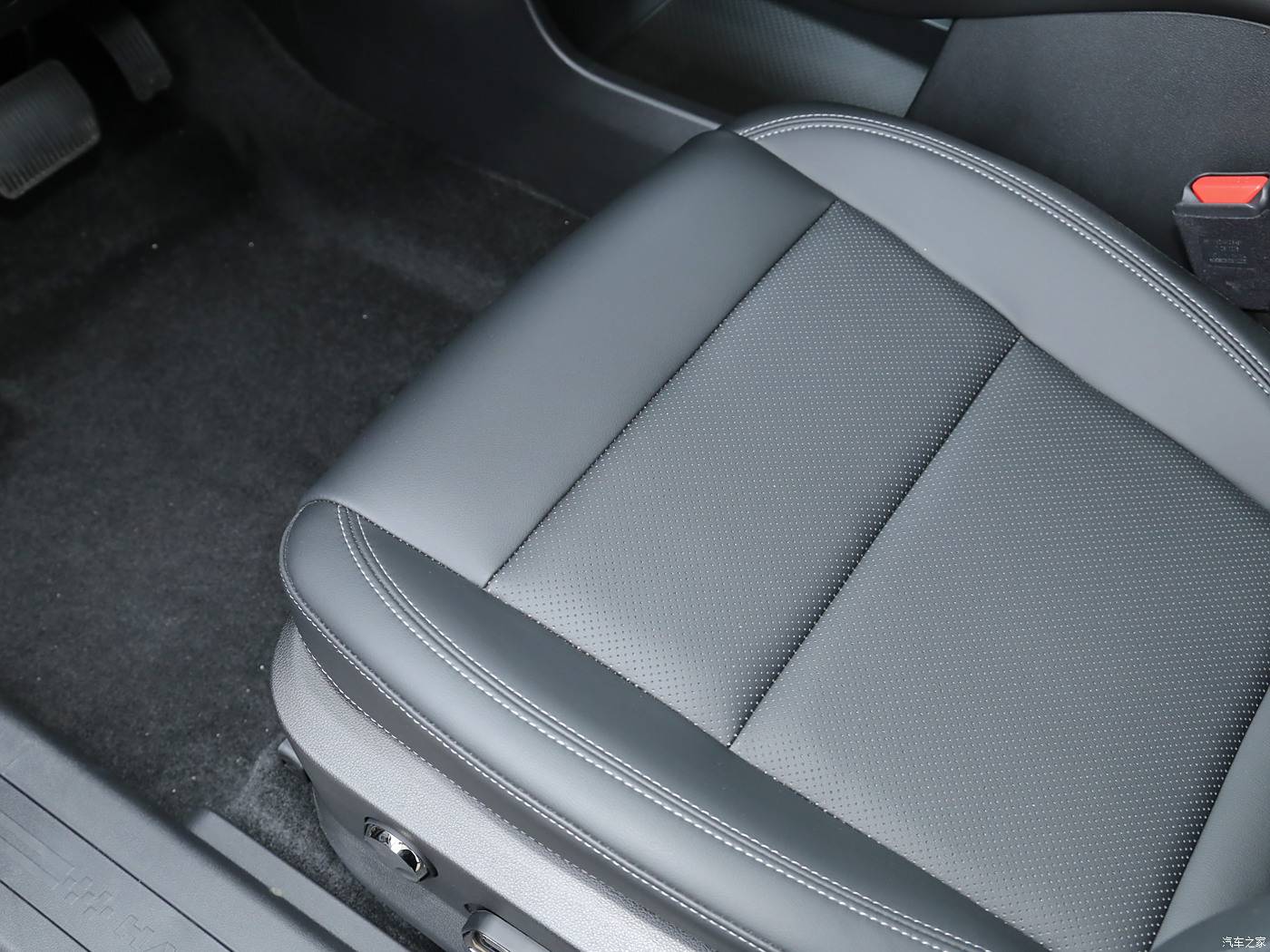

Seat material	● imitation leather
Main seat adjustment mode	● Front and rear adjustment ● backrest adjustment ● high and low adjustment (2 direction) ● waist support (2)
Secondary seat adjustment mode	● Front and rear regulation ● backrest regulation
Main / passenger seat electric adjustment	Main ● / Deputy-
Front seat function	● heat
Electric seat memory function

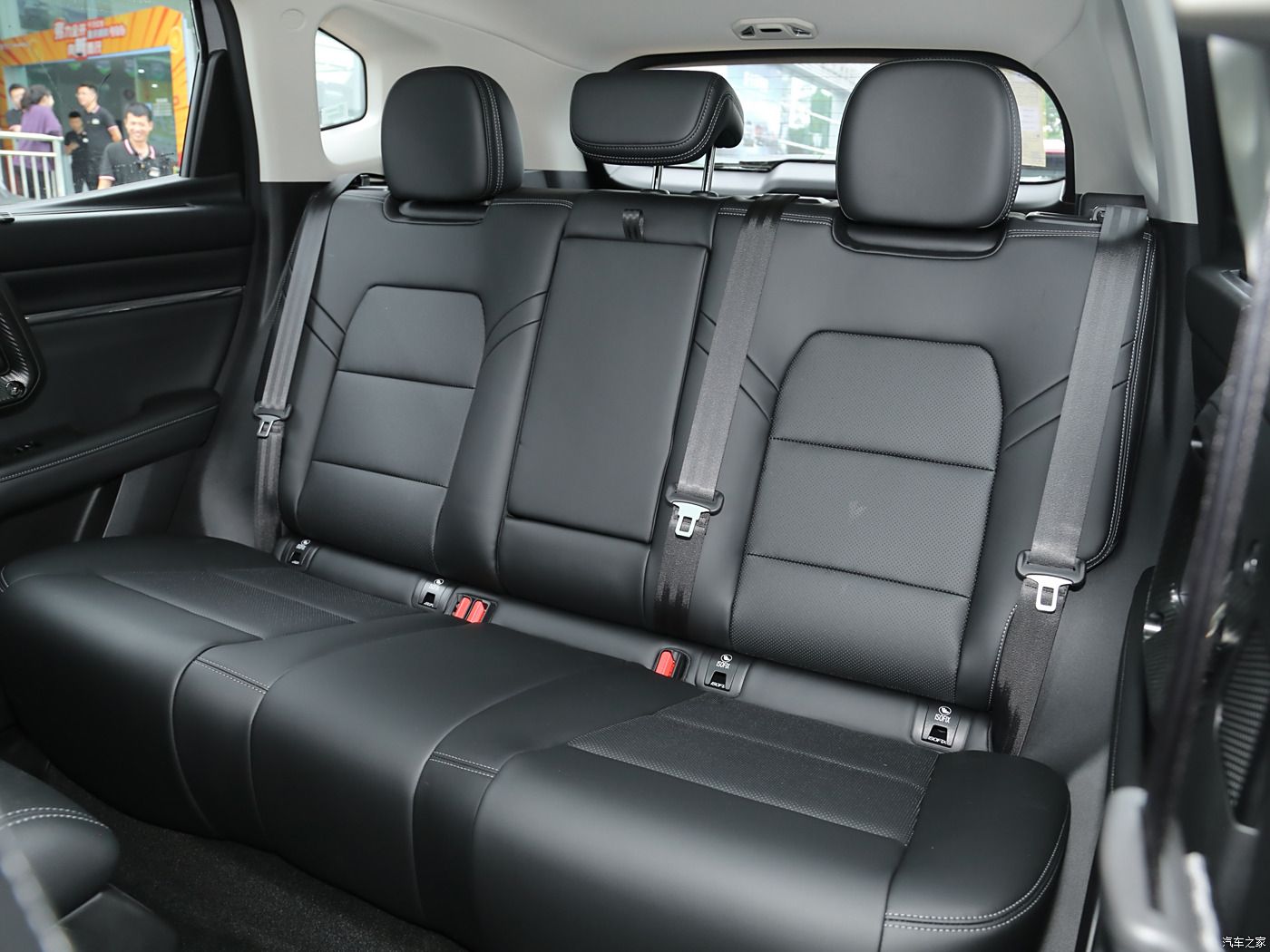

Second-row seat adjustment	● on-back regulation

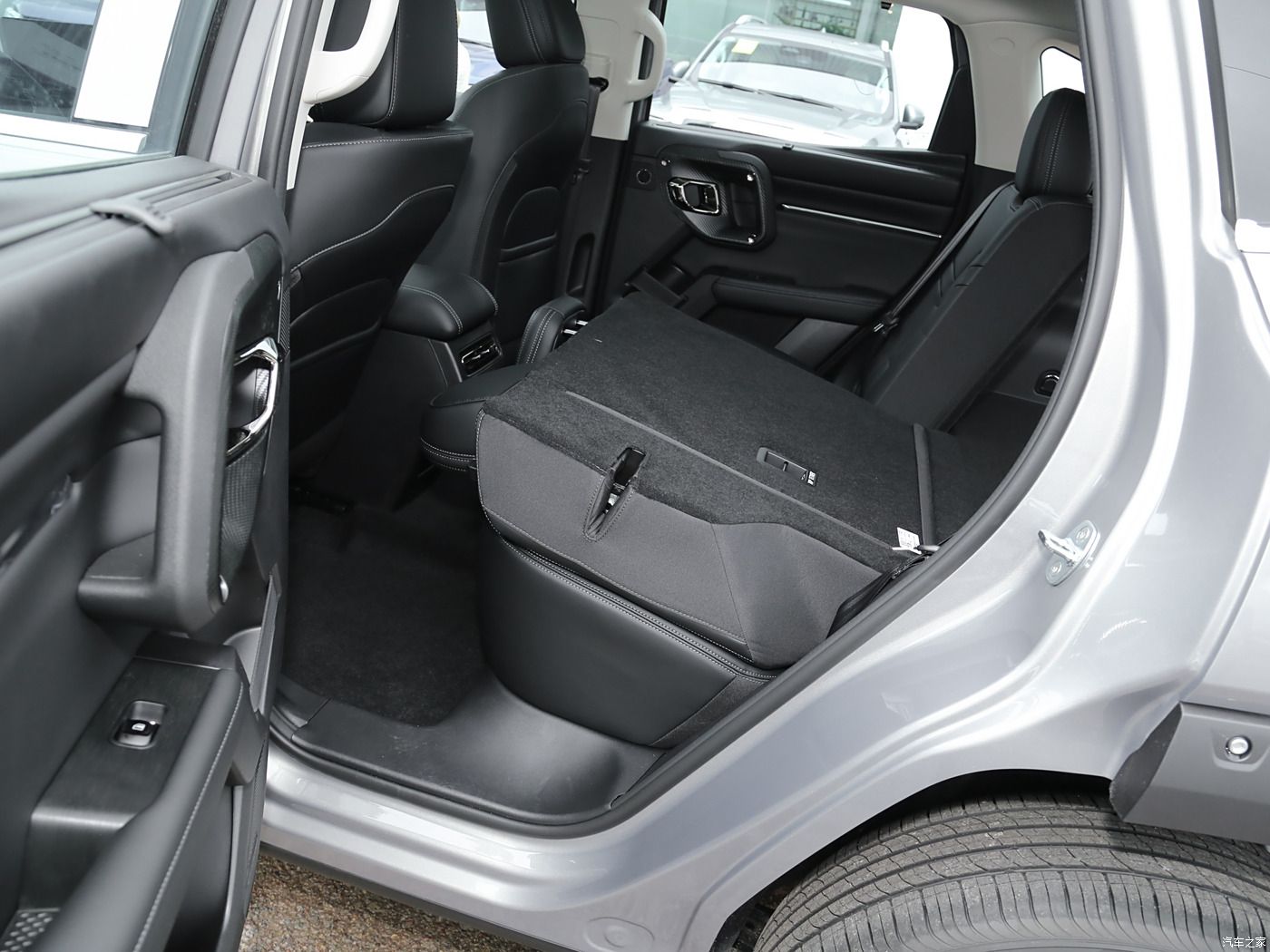

The rear seat is inverted form	● ratio down
Front / rear center armrest	Pre- ● / post- ●
The rear cup holder	●
Sound / car lighting
Number of speakers	● 8 horn
nterior environment atmosphere lights
Air conditioning / refrigerator
Air-conditioning temperature control mode	● Automatic Air Conditioning
The back seat air outlet	●
Temperature partition control	●
Car-mounted air purifier
Interior PM2.5 filter device	●
negative ion generator
